2.92系列
2.92系列
2.92系列产品是在SMA基础上发展起来的精密毫米波连接器,可与SMA系列产品对接互换。其外导体内径为2.92mm、特性阻抗为50Ω、连接机构为1/4-36UNS-2 英制螺纹的射频同轴连接器。采用空气界面,具有体积小,重量轻,使用频率高, 连接可靠等优点。本系列产品可根据客户要求定制。

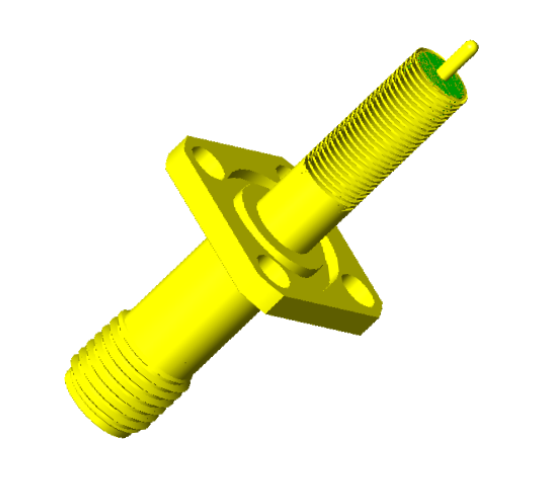

2.92(M)-KFK1

2.92(M)-KFK1
  • 在46GHz以下使用时,具有优良的电性能,能在18GHz以下使用时,电性能则优于SMA接头。
  • 与现存 SMA和APC-3.5连接器在机械性能上能兼容。
  • 外导体壁厚比 SMA接头厚,工作可靠性高。
  • 广泛应用于现代精密计测领域和各类毫米波通信设备中。
Product Data
绝缘电阻
≥5000MΩ(500VDC)
介质耐压
750V(50Hz,交流有效值,海平面处)
频率范围
DC-18GHz
气密性
≤1.013*10*-3Pa.cm³/s(He)
盐雾
≥48小时(根据客户要求可达到 96小时)
工作温度范围
-65℃ ~ +165℃
特性阻抗
50 Ω
机械寿命
500次
