N系列
N系列
N系列产品按照美军标MIL-C-39012研制生产的一种具有螺纹连接机构的中小功 率连接器。该系列产品能与国际上N系列射频同轴连接器相应产品进行互换。本 系列产品可根据客户要求定制。

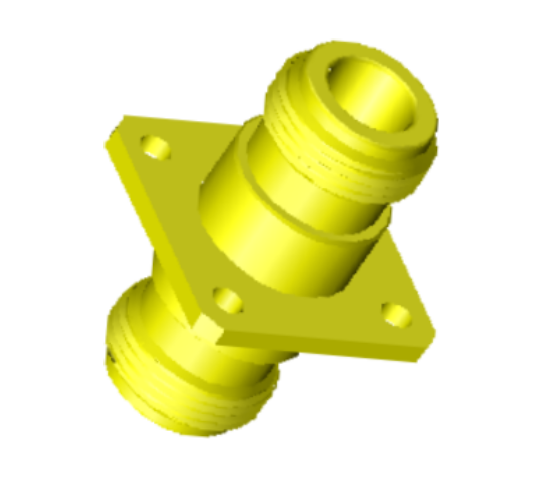

N(M)-KFK3

N(M)-KFK3
  • N系列产品按照美军标MIL-C-39012研制生产的一种具有螺纹连接机构的中小功率连接器。
  • 该系列产品能与国际上N系列射频同轴连接器相应产品进行互换。
  • 抗振性强,可靠性高,机械和电气性能优良。
  • 广泛应用于无线电设备和电子仪器中连接射频同轴电缆。
  • 本系列产品可根据客户要求定制。
Product Data
绝缘电阻
≥5000MΩ(500VDC)
介质耐压
1500V(50Hz,交流有效值,海平面处)
频率范围
DC-11GHz
气密性
≤1.013*10*-3Pa.cm³/s(He)
盐雾
≥48小时(根据客户要求可达到 96小时)
工作温度范围
-65℃ ~ +165℃
特性阻抗
50 Ω
机械寿命
500次
