BMA系列
BMA系列
BMA系列产品体积小、接触可靠;机械性能优越;对接方便,广泛应用于雷达等整机系统。

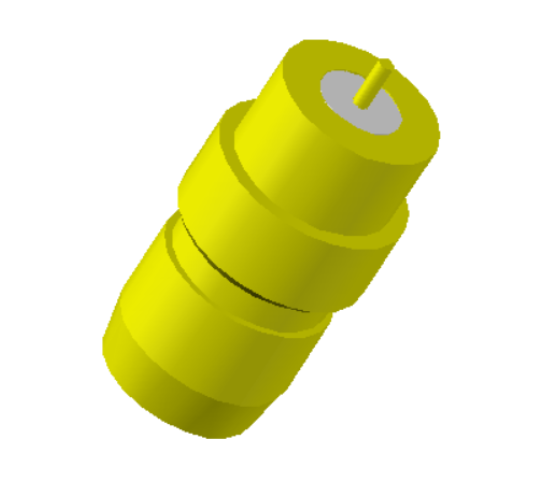

BMA(M)-JHD2

BMA(M)-JHD2
  • 可用于各种微波电路的连接,尤其适用于机箱、机柜的盲插合,有利于雷达等整机系统的模块化。
  • BMA系列产品从结构上看是SMA系列的推入式形式,接口界面采用空气界面,使用频率达18GHz。
  • 体积小、接触可靠,机械性能优越,对接方便。
  • 本系列产品可根据客户要求定制。
Product Data
绝缘电阻
≥5000MΩ(500VDC)
介质耐压
1000V(50Hz,交流有效值,海平面处)
频率范围
DC-18GHz
气密性
≤1.013*10*-3Pa.cm³/s(He)
盐雾
≥48小时(根据客户要求可达到 96小时)
工作温度范围
-65℃ ~ +165℃
特性阻抗
50 Ω
机械寿命
1000次
