BNC系列
BNC系列
BNC系列产品按照美军标MIL-C-39012/16-24研制生产的一种卡口式射频同轴连 接器,可与国际同系列产品互换。本系列产品可根据客户要求定制。

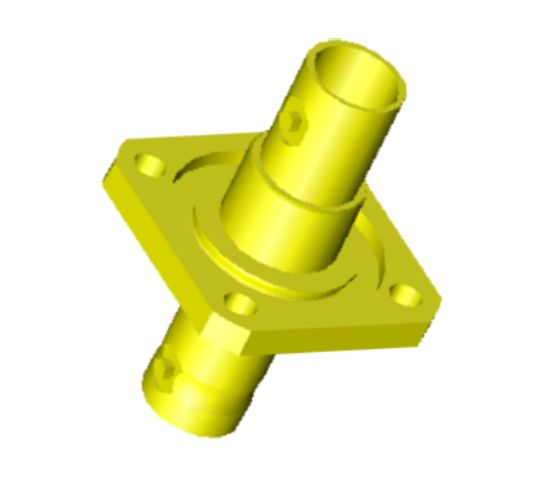

BNC(M)-75KKF

BNC(M)-75KKF
  • BNC系列产品按照美军标MIL-C-39012/16-24研制生产的一种卡口式射频同轴连接器,可与国际同系列产品互换。
  • 连接迅速、接触可靠。
  • 广泛应用于无线电设备和电子仪器中连接射频同轴电缆。
  • 本系列产品可根据客户要求定制。
Product Data
绝缘电阻
≥5000MΩ(500VDC)
介质耐压
1500V(50Hz,交流有效值,海平面处)
频率范围
DC-4GHz
气密性
≤1.013*10*-3Pa.cm³/s(He)
盐雾
≥48小时(根据客户要求可达到 96小时)
工作温度范围
-65℃ ~ +165℃
特性阻抗
50 Ω
机械寿命
500次
