Glass-To-Metal Seal Micro-Rectangular Electrical Connector
Glass-To-Metal Seal Micro-Rectangular Electrical Connector
高可靠性应用的精密电连接器

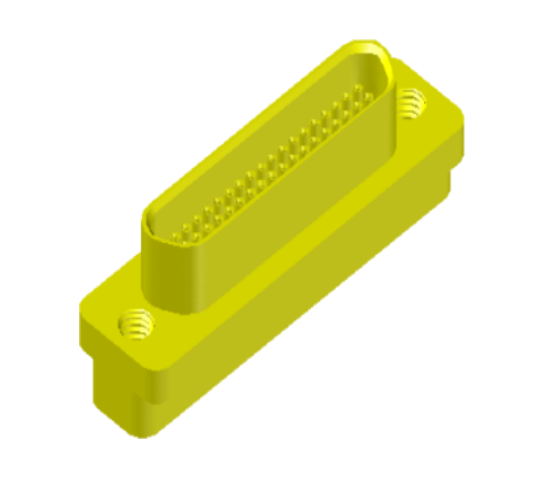

HJ30JM-36ZKP4-B1

HJ30JM-36ZKP4-B1
  • 本系列产品属整体玻璃珠烧结密封插座,接点间距、排距均为1.27mm。
  • 插座整体镀金。
  • 介质采用玻璃烧结密封,气密性良好,具有密封接口功能,实现腔体的密封,可用于需要较高密封要求的整机系统。
  • 规格有12、18、24、30、36、55、100芯7种规格。
  • 本系列产品可耐受较强振动、冲击等严酷使用环境,主要用于千兆以太网、DVI\LVDS 等信号传输。
  • 满足小空间线对板高速信号传输,适用于各类电子通信设备的电路连接。
  • 本系列产品可根据客户要求定制。
Product Data
绝缘电阻
≥5000MΩ(500VDC)
介质耐电压
300V r.m.s
气密性
≤1*10^-3Pa.cm³/s(He)
额定电流
3A
盐雾
≥48小时(根据客户要求可达到96小时)
工作温度
-55°C~+125°C
接触电阻
≤20mΩ
振动
频率10~2000Hz,加速度196m/s²
冲击
490m/s²,11ms,后峰锯齿波,2.68m/s
机械寿命
500次
外壳材料
可伐合金
接触件材料
可伐合金
绝缘介质
玻璃
表面涂覆
镀镍,镀金
