GJB Rectangular
GJB Rectangular
毕科连接器具有三种主要通用锁定机制

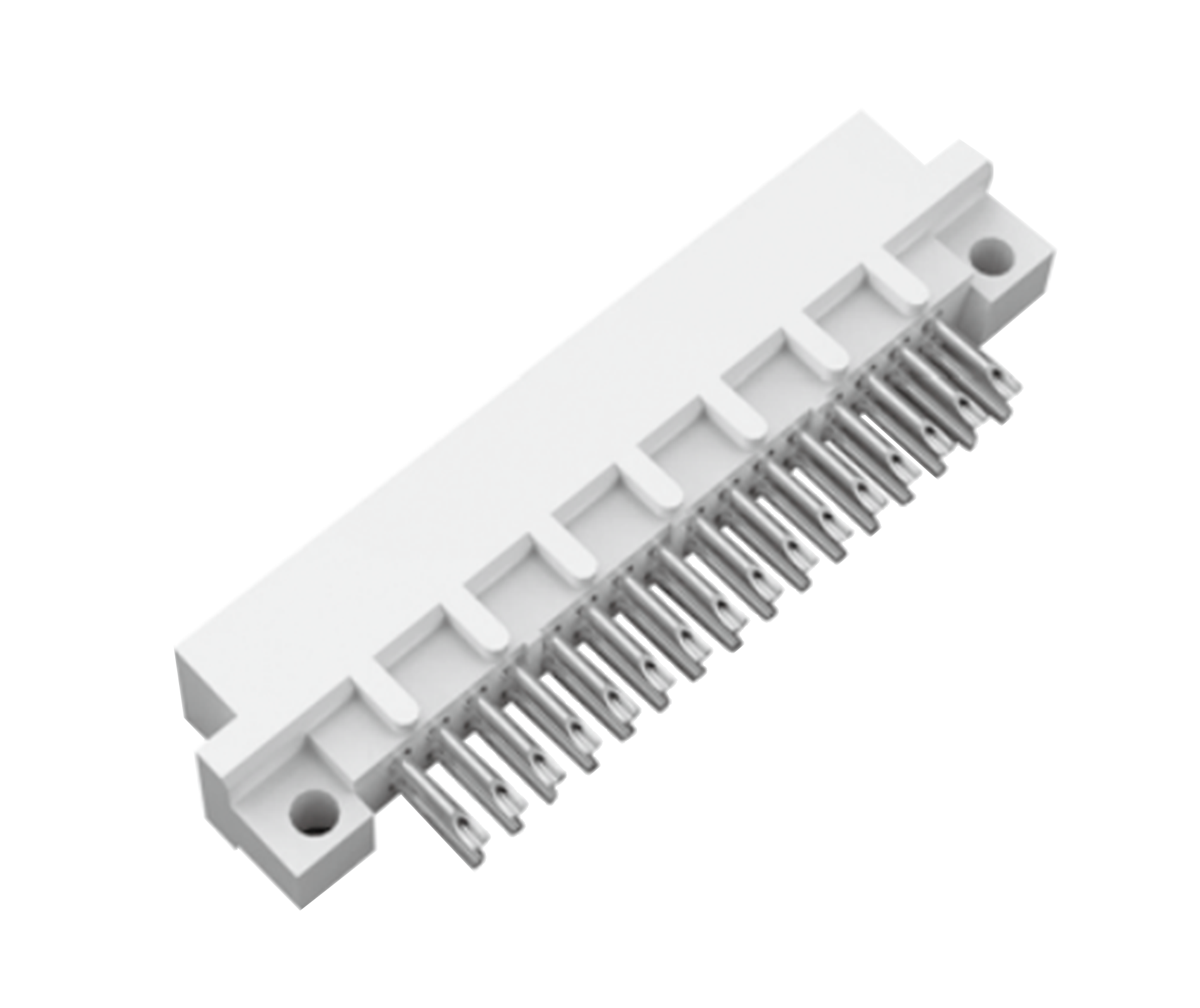

BIXJ18BW96Z01
  • 该系列连接器符合GJB14358/5-2002军用标准并参照IEC-603-2及DIN41612设计。
  • 主要应用于航空、航天、通信设备、电子计算机的印制板电路等领域的信号连接。
  • 接触件为32~96芯,其孔位间距采用2.54mm英制网格排列,插孔采用线簧孔或高可靠栅栏式管簧孔结构。
Product Data
耐 电 压
1500V
额定电压
300V
绝缘电阻
常温≥1000MΩ,湿热≥20MΩ
接触电阻
≤0.015Ω
额定电流
2A
环境温度
-55℃~+125℃
相对湿度
40℃±2℃时,相对湿度90-95%
振 动
10Hz~2000Hz 加速度为147m/s²
冲 击
加速度980m/s²
机械寿命
插拔≥1000次
