GJB Rectangular
GJB Rectangular
毕科连接器具有三种主要通用锁定机制

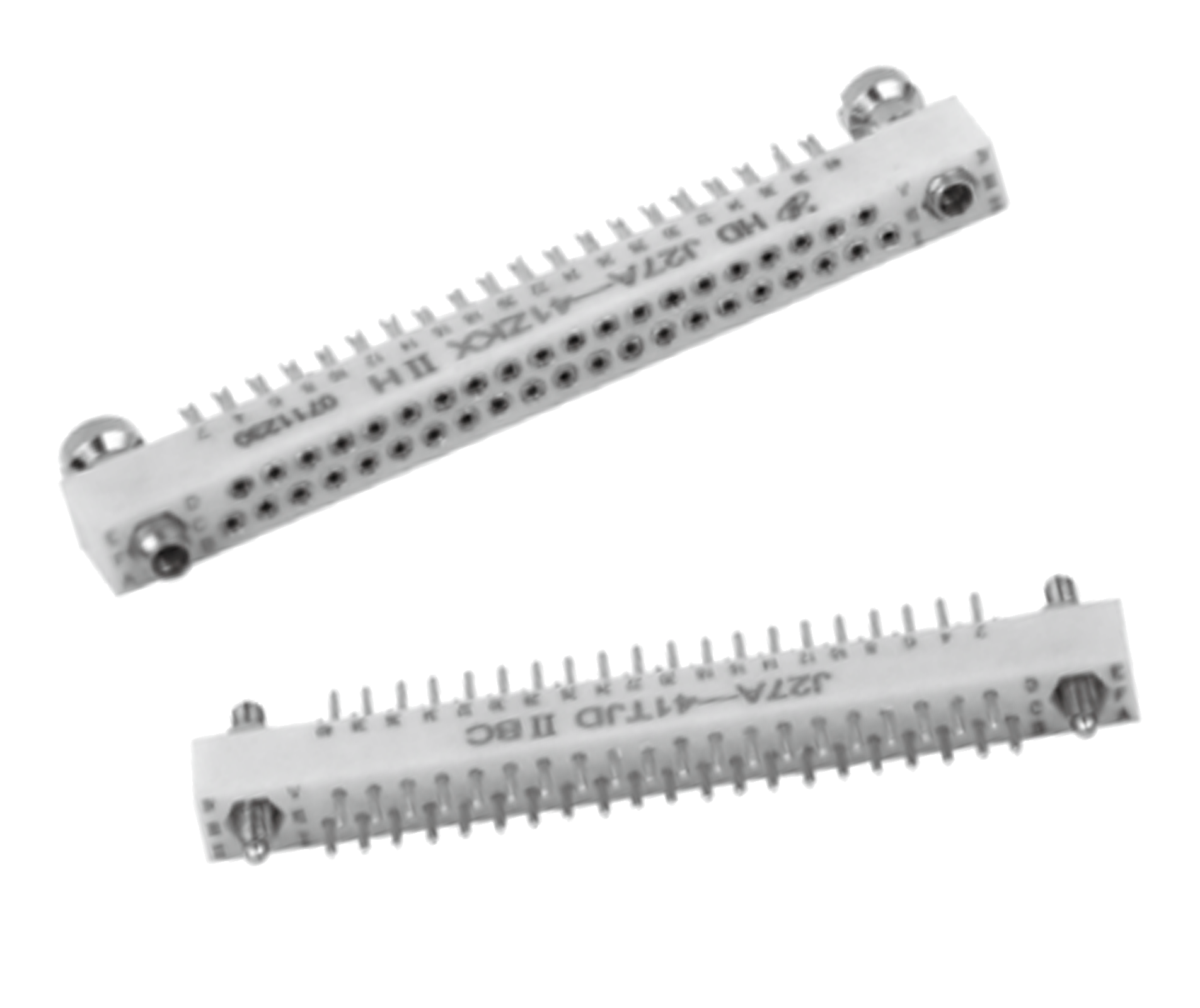

BIXJ27A-41ZKLⅡBC-0.8
  • 符合IEC130标准和MIL-C-55302标准要求。
  • 接触件数目有17、29、41、53、65、72、84、96芯等规格。
  • 连接器尾端端接形式分为直插印制板式、弯插印制板式、焊接式和压接式。
  • 安装锁紧形式灵活。
  • 定位导向装置有36种方位组合,具有很强的防误插位功能。
Product Data
耐压
1000V
绝缘电阻
大于5000MΩ
工作温度
Ⅰ级 -55~+100℃ Ⅱ级 -55~+125℃ Ⅲ级 -55~+175℃
冲 击:加速度1000m/s²
正弦振动:10Hz-2000Hz,加速度150m/s²
绝缘电阻:≥5000MΩ
相对湿度:+40℃达98%
介质耐压:1000V
低 气 压:1.33KPa 150V
机械寿命:插拔≥1000次
