J29MI Series
J29MI Series

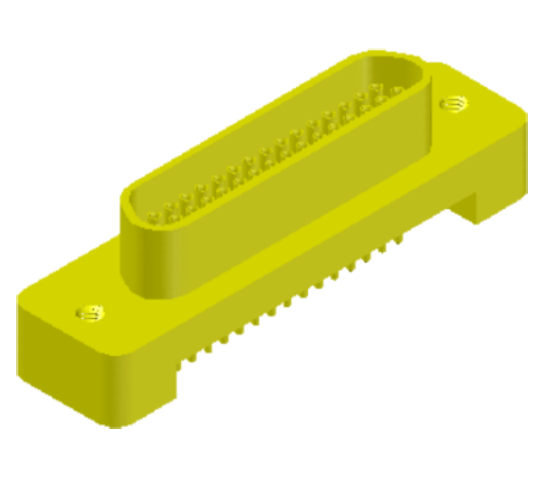

J29MI-31ZKNP17

J29MI-31ZKNP17
  • 本系列产品属单孔玻璃珠烧结密封插座,接点间距为1.91mm,排距为1.65mm。
  • 插座整体镀金。
  • 介质采用玻璃烧结密封,气密性良好,具有密封接口功能,实现腔体的密封,可用于需要较高密封要求的整机系统。
  • 规格有9、15、21、25、31、37、51、66 芯8种规格。
  • 本系列产品可耐受较强振动、冲击等严酷使用环境。
  • 广泛用于航天、航空、电子计算机等各类电子设备的电路连接,尤其适合用于对使用空间、设备轻型化有特殊要求的使用场合。
  • 本系列产品可根据客户要求定制。
Product Data
绝缘电阻
≥5000MΩ(500VDC)
介质耐电压
300V r.m.s
气密性
≤1*10^-3Pa.cm³/s(He)
额定电流
5A
盐雾
≥48小时(根据客户要求可达到96小时)
工作温度
-55°C~+125°C
接触电阻
≤10mΩ
振动
频率10~2000Hz,加速度196m/s²
冲击
490m/s²,11ms,后峰锯齿波,2.68m/s
机械寿命
500次
外壳材料
可伐合金
接触件材料
可伐合金
绝缘介质
玻璃
表面涂覆
镀镍,镀金
