GJB Rectangular
GJB Rectangular
毕科连接器具有三种主要通用锁定机制

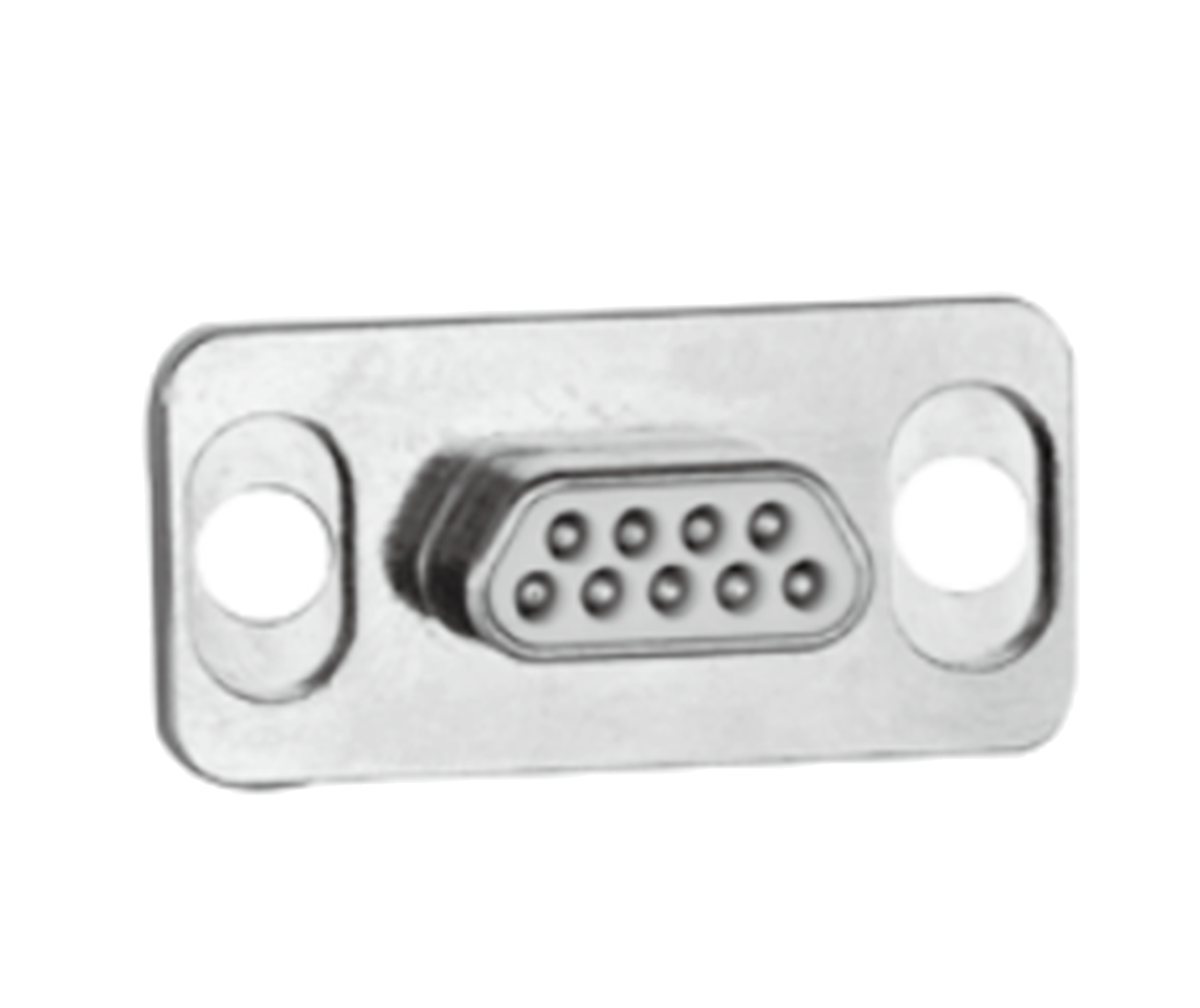

BIXJ29A-25ZKL4A1D2
  • 现有9、15、21、25、31、37、51、66芯共八种规格可供选用。
  • 采用绞线式插针(俗称麻花针),接点间距为1.91mm,排距为1.65 mm。
  • 适用导线线芯截面积为0.15~0.3mm。
  • 广泛应用于航天、航空、电子计算机等各类电子设备的电路连接。
Product Data
环境温度
-55~+125℃
振 动
10~2000 Hz 200 m/s²
随机振动
功率频谱密度0.4G²/HZ 总加速度均方根值23.1G
冲 击
1200m/S²,6ms
额定电流
5A
接触电阻
≤10 mΩ
绝缘电阻
≥5000 MΩ
介质耐压 1500 V DC
机械寿命
500次
密封性指标(仅适用于J29M系列产品)
水 密 封:压差一个大气压,水检无气泡产生; 气 密 封:1×10-1Pa.cm³/s(一个大气压差)
