J30JMI Series
J30JMI Series
The series of connectors is a single hole glass bead sintering sealed socket, contact spacing is 1.27mm, row spacing is 1.1mm, which it can be used for high sealing requirements of the whole machine system.

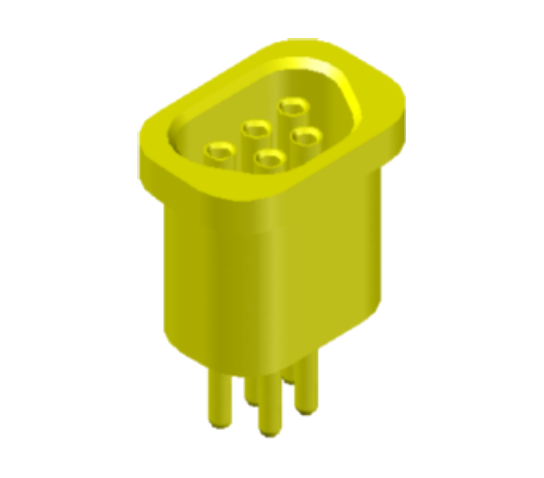

J30JMI-5ZKN

J30JMI-5ZKN
  • 接点间距为1.27mm。
  • 采用玻璃烧结,气密性好。
  • 适用于较高密封要求的整机。
  • 尾部端接还可直接与印制板焊接。
  • 耐高温,电磁屏蔽性优良,体积小,重量轻,耐冲击,抗震动。
  • 适用于地面、舰载、机载、宇航、弹载等环境。
Product Data
绝缘电阻
≥5000MΩ(500VDC)
介质耐电压
300V r.m.s
气密性
≤1*10^-3Pa.cm³/s(He)
额定电流
3A
盐雾
≥48小时(根据客户要求可达到96小时)
工作温度
-55°C~+125°C
接触电阻
≤20mΩ
振动
频率10~2000Hz,加速度196m/s²
冲击
735m/s²,6ms,后峰锯齿波,2.19m/s
机械寿命
500次
外壳材料
可伐合金
接触件材料
可伐合金
绝缘介质
玻璃
表面涂覆
镀镍,镀金
