J40JMI Series
J40JMI Series

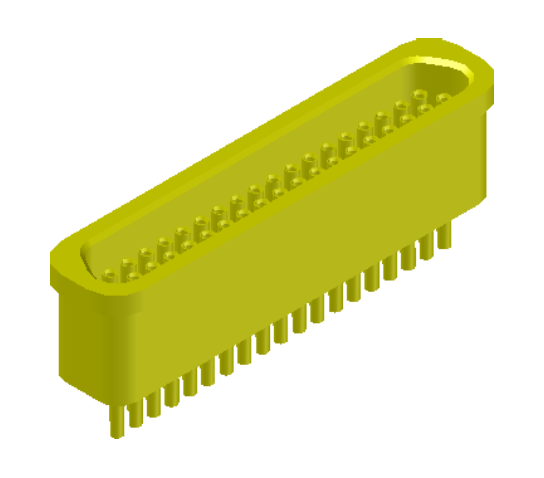

J40JMI-31ZKS0850X

J40JMI-31ZKS0850X
  • 本系列产品属单孔玻璃珠烧结密封插座。
  • 接点间距为1.0mm。
  • 插座整体镀金。
  • 介质采用玻璃烧结密封,气密性良好,具有密封接口功能,实现腔体的密封。
  • 规格有11、13、15、25、31、37、39、51芯8种规格。
  • 耐高温、体积小、电接触可靠、良好的密封性、重量轻、接点密度高、抗振动。
  • 本系列产品适用于弹上各电子设备与主控计算机的总线连接或各类小型化电子设备内部的电路连接。
  • 本系列产品可根据客户要求定制。
Product Data
绝缘电阻
≥5000MΩ(500VDC)
介质耐电压
300V r.m.s
气密性
≤1*10^-3Pa.cm³/s(He)
额定电流
3A
盐雾
≥48小时(根据客户要求可达到96小时)
工作温度
-55°C~+125°C
接触电阻
≤20mΩ
振动
频率10~2000Hz,加速度196m/s²
冲击
490m/s²,11ms,后峰锯齿波,2.68m/s
机械寿命
500次
外壳材料
可伐合金
接触件材料
可伐合金
绝缘介质
玻璃
表面涂覆
镀镍,镀金
