SBMA系列
SBMA系列
SBMA系列产品体积小、可靠性高;维护方便;标准化程度高,广泛应用于雷达等整机系统。可根据客户要求定制。

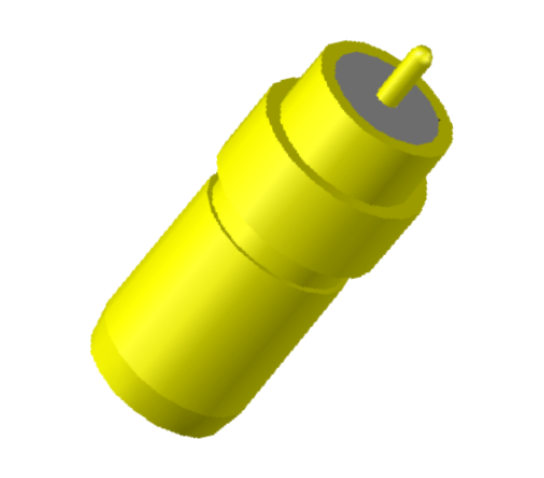

SBMA(M)-JHD5

SBMA(M)-JHD5
  • SBMA系列产品是小型化的BMA连接器,由带固定以及浮动接触件的盲配连接器组成。
  • 可以调整一定量的轴向和径向不对准。
  • 直插式连接机构,与螺纹连接机构相比节省了旋转空间,提高了封装密度。
  • SBMA连接器适用于那些要求多路连接器接触的场合,尤其是子系统、系统“盲配”互连。
  • 体积小、可靠性高,维护方便,标准化程度高。
  • 本系列产品可根据客户要求定制。
Product Data
绝缘电阻
≥5000MΩ(500VDC)
介质耐压
500V(50Hz,交流有效值,海平面处)
频率范围
DC-28GHz
气密性
≤1.013*10*-3Pa.cm³/s(He)
盐雾
≥48小时(根据客户要求可达到 96小时)
工作温度范围
-65℃ ~ +165℃
特性阻抗
50 Ω
机械寿命
1000次
