SMA系列
SMA系列
SMP系列体积小,接触可靠;机械性能优越;对接方便。广泛应用于微波通讯、航天航海、微波测量设备等领域。本系列产品可根据客户要求定制。

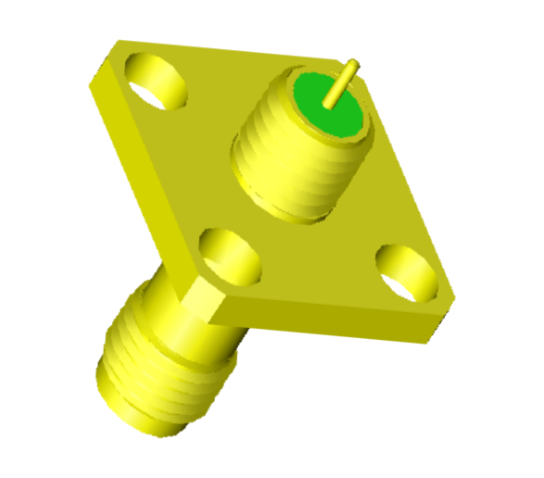

SMA(M)-KFK

SMA(M)-KFK
  • SMA射频同轴连接器具有体积小、频带宽、机械电气性能优越、是应用最为广泛的射频电连接器。
  • SMA系列外导体内径为4.13mm,特性阻抗为50Ω,连接机构为1/4-36UNS-2 英制螺纹的连接器。
  • 体积小、接触可靠,机械性能优越,对接方便。
  • 广泛应用于微波通讯、航天航海、微波测量设备等领域。
  • 本系列产品可根据客户要求定制。
Product Data
绝缘电阻
≥5000MΩ(500VDC)
介质耐压
1000V(50Hz,交流有效值,海平面处)
频率范围
DC-18GHz
气密性
≤1.013*10*-3Pa.cm³/s(He)
盐雾
≥48小时(根据客户要求可达到 96小时)
工作温度范围
-65℃ ~ +165℃
特性阻抗
50 Ω
机械寿命
500次
