SMPS系列
SMPS系列
SMPS系列连接器是一种更小型推入式射频同轴连接器,广泛用于模块化密集安装的场所、通信、航天、通信等领域

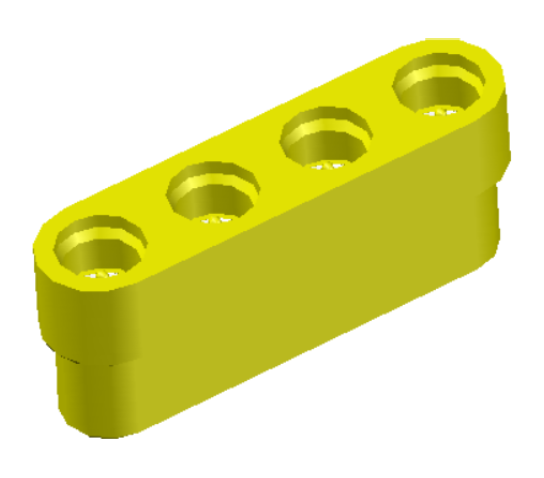

BTB-4CSMPJFUZZ

BTB-4CSMPJFUZZ
  • 结构紧凑,尺寸小,节约安装空间,适合于高密度安装。
  • 连接操作方便简单。
  • 插头端转接器的一端比另一端具有更高的插拔力,使得模块分离时转接器可以留在插拔力高的一端。
Product Data
绝缘电阻
≥1000MΩ(500VDC)
介质耐压
325V(50Hz,交流有效值,海平面处)
频率范围
DC-60GHz
气密性
≤1.013*10*-3Pa.cm³/s(He)
盐雾
≥48小时(根据客户要求可达到 96小时)
工作温度范围
-65℃ ~ +165℃
特性阻抗
50 Ω
机械寿命
光孔500次,全擒纵100次
