MCC-U Series
MCC-U Series

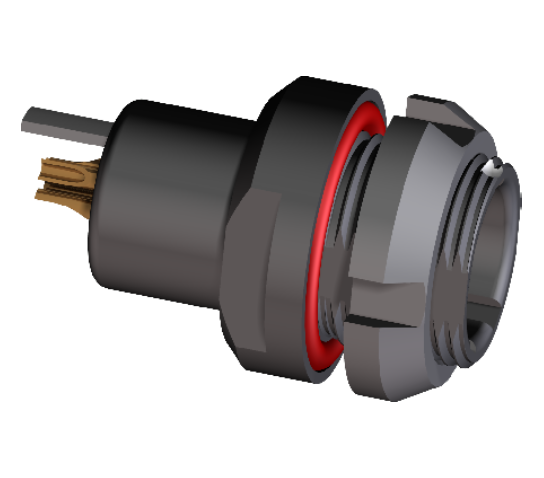

Z8CUDS-P07MAA0-WK1L

Z8CUDS-P07MAA0-WK1L
  • Push-Pull,self locking, it can achieve fast connection and separation;
  • And it has the function of anti-error, with long plugging life, good shielding performance, excellent sealing performance, environmental resistance etc.
Product Data
Material
Copper Alloy
Working voltage
200V
Lock mode
Push-Pull
Plug/Receptacle
Receptacle
IP Rating
IP68
Single core load current
1A
Working temperature
-55°C~+125°C
Relative humidity
95% at 40°C
Salt spray
Aluminum alloy 96H, Copper Alloy 500H, Stainless steel 1000H
IP Rating
IP68, 2m water depth, 24h no water seepage
Receptacle leakage rate
the pressure value is 10Kpa, and the leakage rate should not be greater than 1.0Pa.m³/s
Mating cycles
≥ 5000 times
Vibration
frequency 10Hz~2000Hz acceleration 147m/s², instantaneous break 1us
Impact
Acceleration 980m/s² instant break 1us
